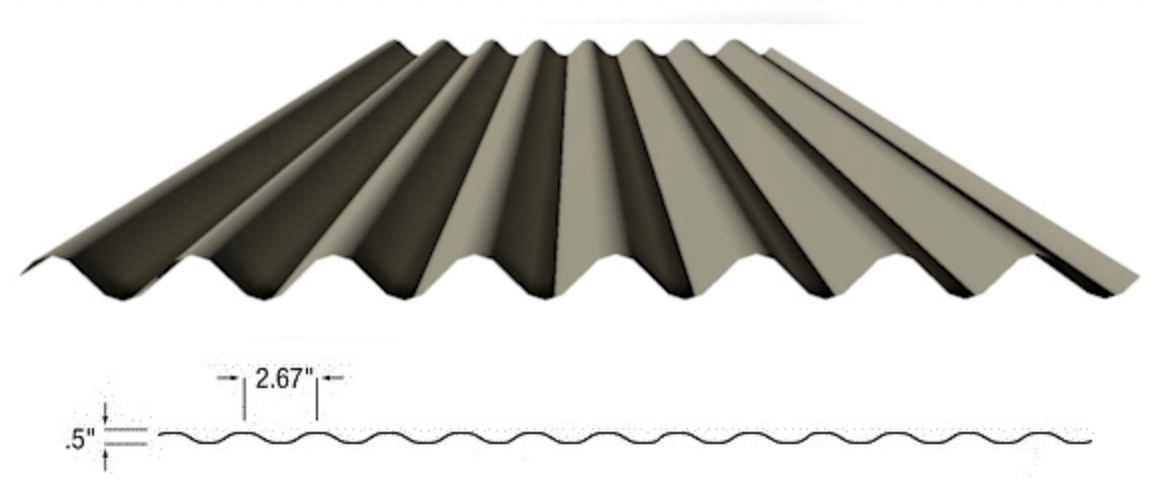

2/5 Corrugated Panel




1/2" Rib Height; 2.67" Centers

Material: Galvalume (Zincalume) or Galvanized

Net Coverage: 24 inches

Rib: 1/2" Rib Height; 2.67" Centers

Drawing: Profile Engineered Detailed Drawing

Gauge: 24GA, 26GA, 29GA

Length: Any length

Finish: SMP or Bare

Colors: 16 Standard Colors; Specialty Colors Upon Request

Slope: 3:12 Minimum Roof Slope

Application: Solid Substrate or Open Framing

Trim/Flashing: Standard and Custom Corrugated Trim and Flashings Available in Bare or Color

Load Tables: 24GA,26GA and 29GA
