Panel Details
Panel Features
Panel Specifications
Rib Height: 1 -1/2’’
Panel Length: 1' to 52'
Net Coverage : 36" (3FT)
Gauges
16GA
18GA
20GA
22GA
Material Type: Galvanized G60 and G90
Grade: 40 KSI & 50 KSI
ICC Certification: ESR-5364

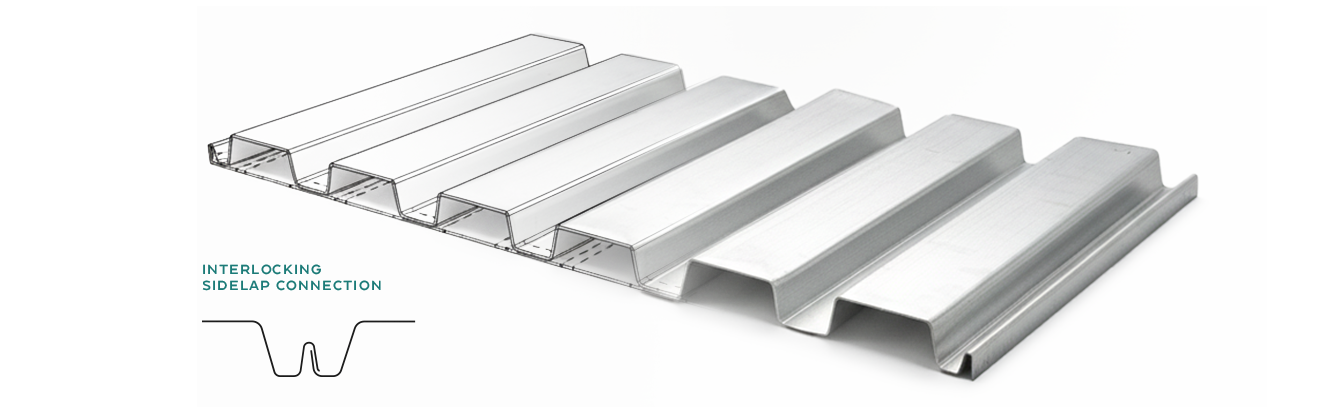

Interlock Or Nestable
Interlocking deck boards - have a unique design that allows them to fit together like puzzle pieces. The edges of each board have a protruding feature that fits into a groove on the adjacent board
Nestable deck boards - on the other hand, are designed to nest inside each other when stacked. The edges of each board are slightly angled, allowing them to fit together

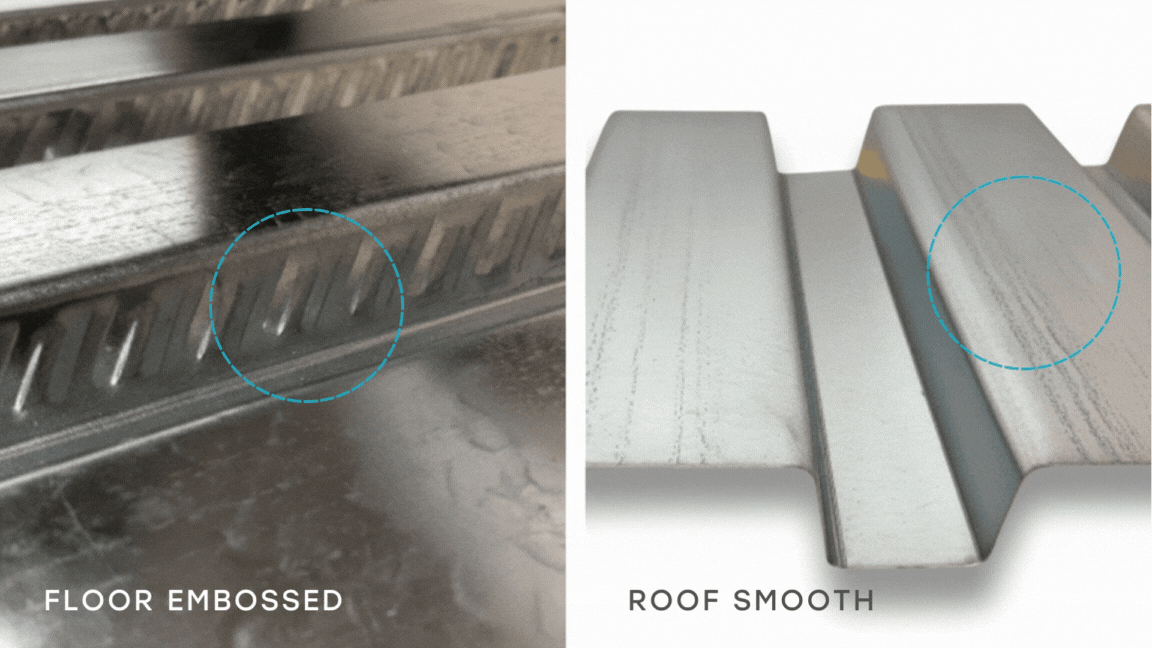

Floor Embossed or Roof Smooth
We offer 2 types of B-Deck finishes: Floor Embossed or Roof Smooth. Typically, embossed B-Deck is used in concrete laying applications while Roof Smooth decking is used for exposed steel finishes.

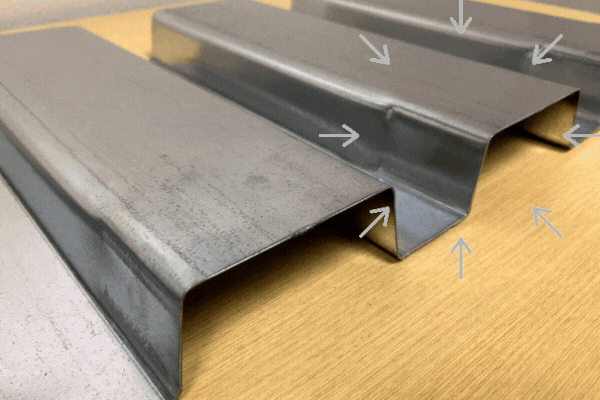

Swedge or Non-Swedge
Swedge B-deck 2” end lap - has a modified end that is designed to interlock with the next sheet of decking. The swedge end has a tapered edge that allows it to fit inside the next sheet of decking, creating a tight and secure connection between the two sheets. This design provides added stability to the decking system and eliminates the need for additional fasteners, reducing installation time and cost.
Non-swedge B-deck- on the other hand, has a straight edge on both ends of the sheet. This design requires the use of additional fasteners to secure each sheet of decking to the structure. Non-swedge B-deck is typically used in applications where the decking will be overlapped and fastened together with screws or bolts.
B-Deck Structural Decking
ICC CERTIFICATION

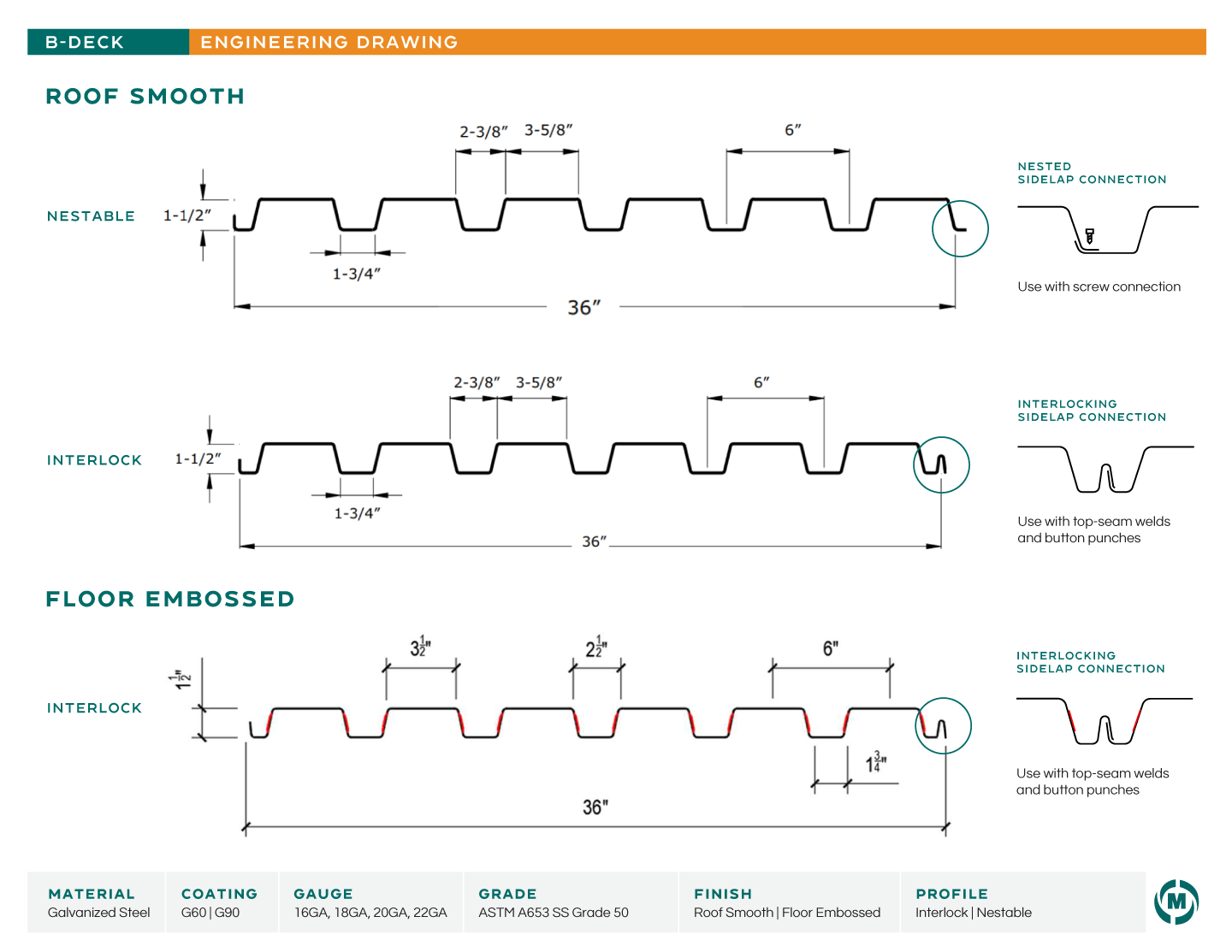

Engineering Detailed Drawing
Roof B-Deck Load Tables
Floor B-Deck Load Tables
Request A B-Deck Quote
Quotes remain valid for 24-Hours and may require re-quoting after that period.
Response time on quote request is 24-Hours.
Quote are Free of Charge
Please fill out the form below with as much detail as possible.
