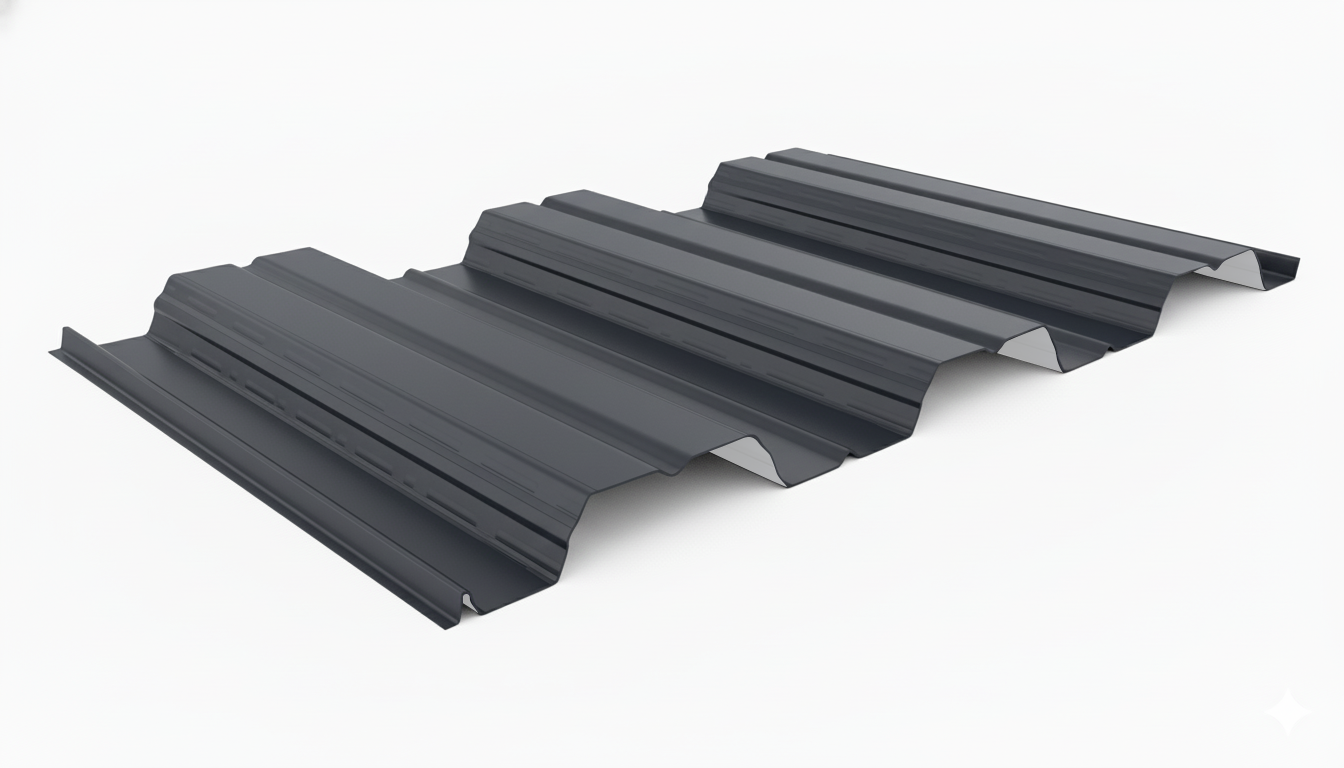

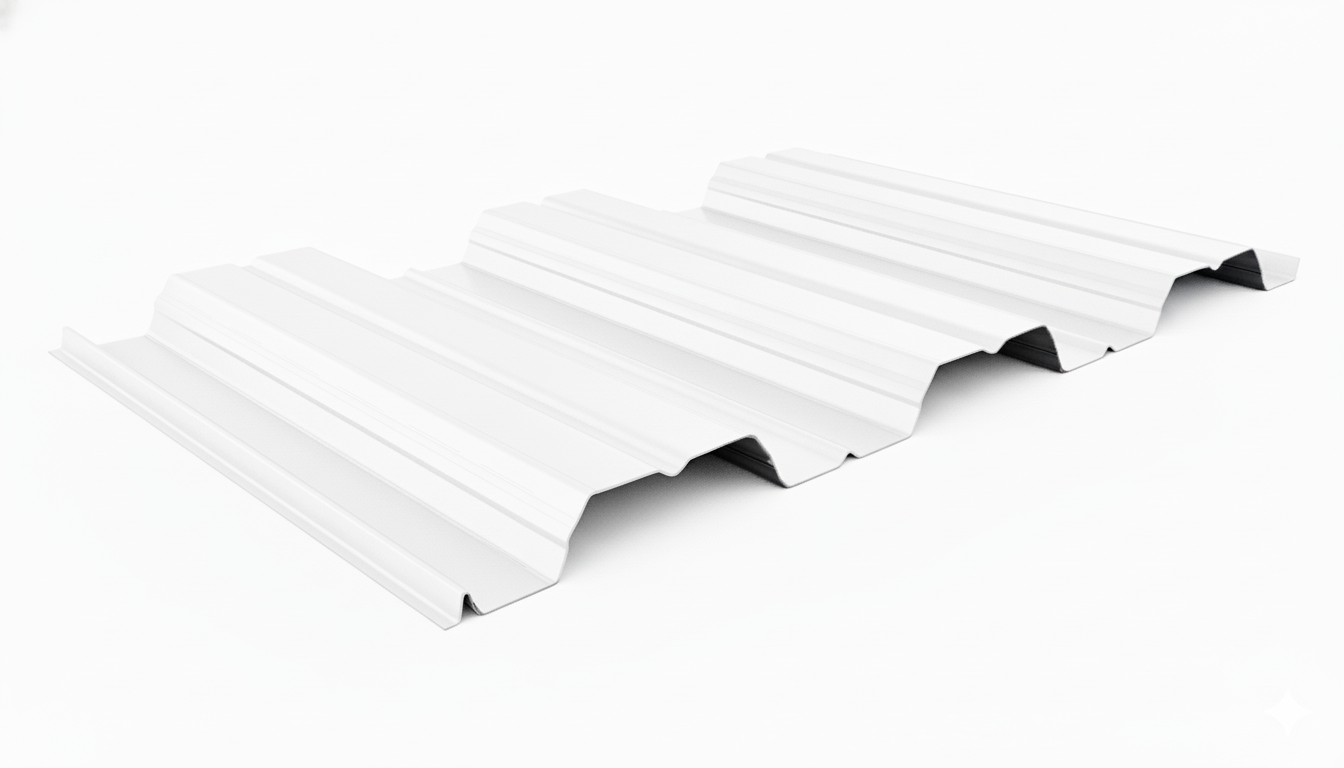

Painted W2 Deck
W2 Deck is a 2-inch deep composite metal floor deck suitable for shorter span floor conditions. It features 3 ribs, a 36-inch width, and interlocking side laps for easy installation. Mechanical embossments enhance the bond between steel and concrete. Available in vented or non-vented finish.
How To Order
Coverage & Profile
Rib Height: 2-1/16’’
Panel Length: 3’ to 40’
Net Coverage : 36" (3FT)
Finish: Vented or Non-Vented
Material & FInish
Material Type: Galvanized G60
Grade: 50
Top Finish: Metroll Polyester Gray/White
Bottom Finish: Metroll Polyester White/Gray
Gauges Available
18GA
22GA

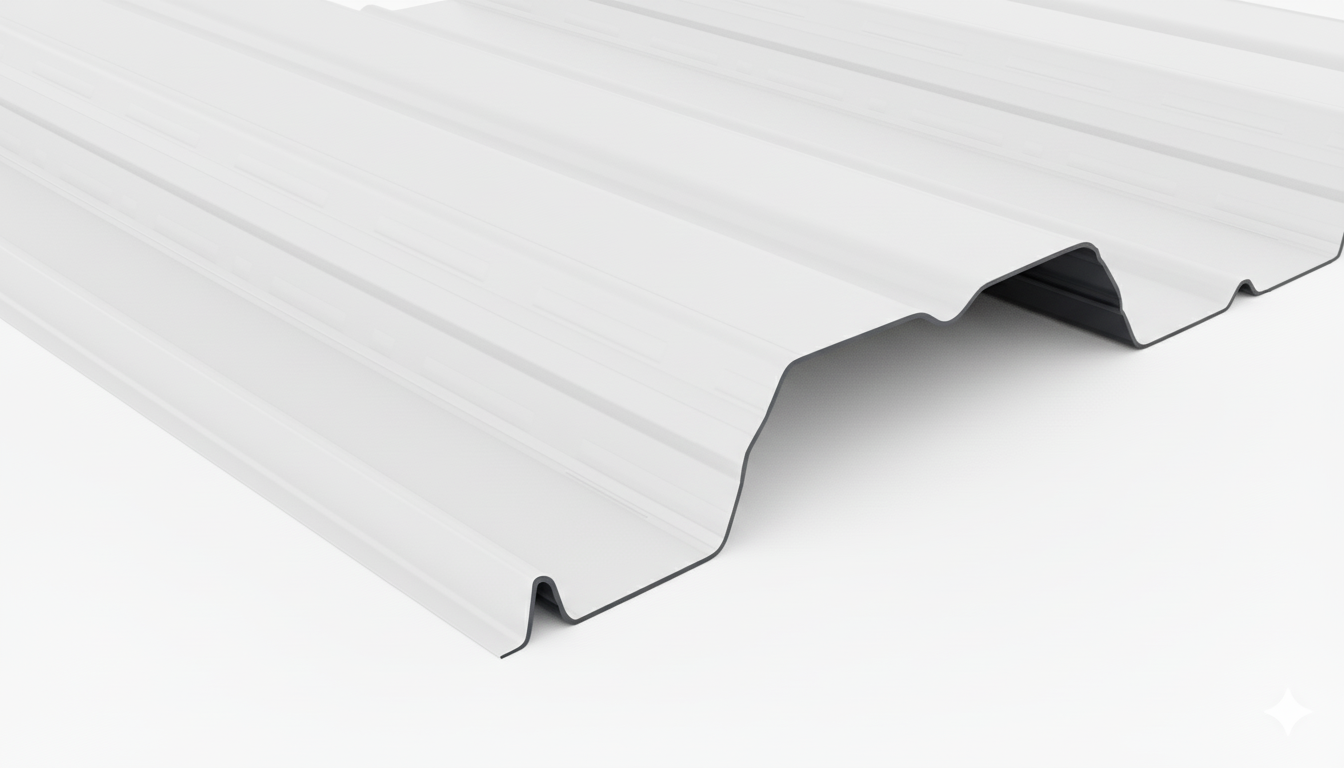

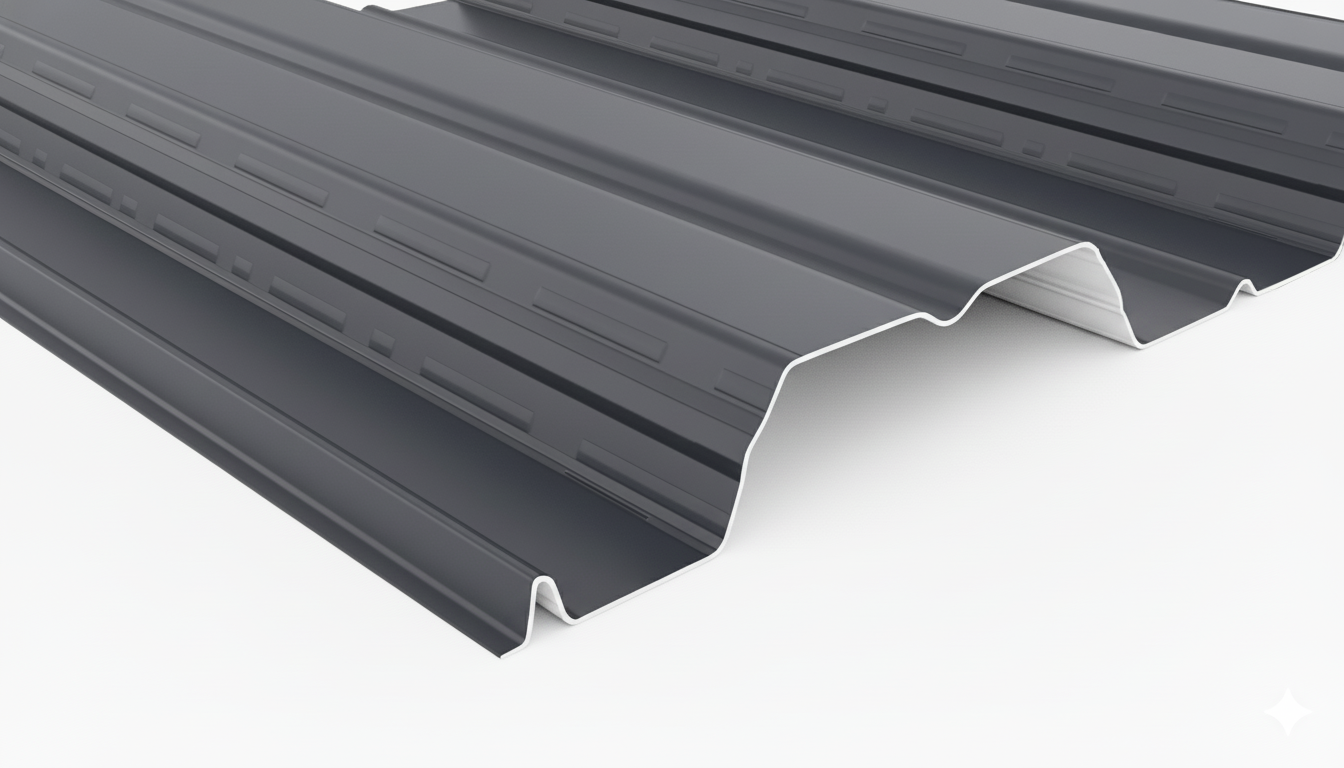

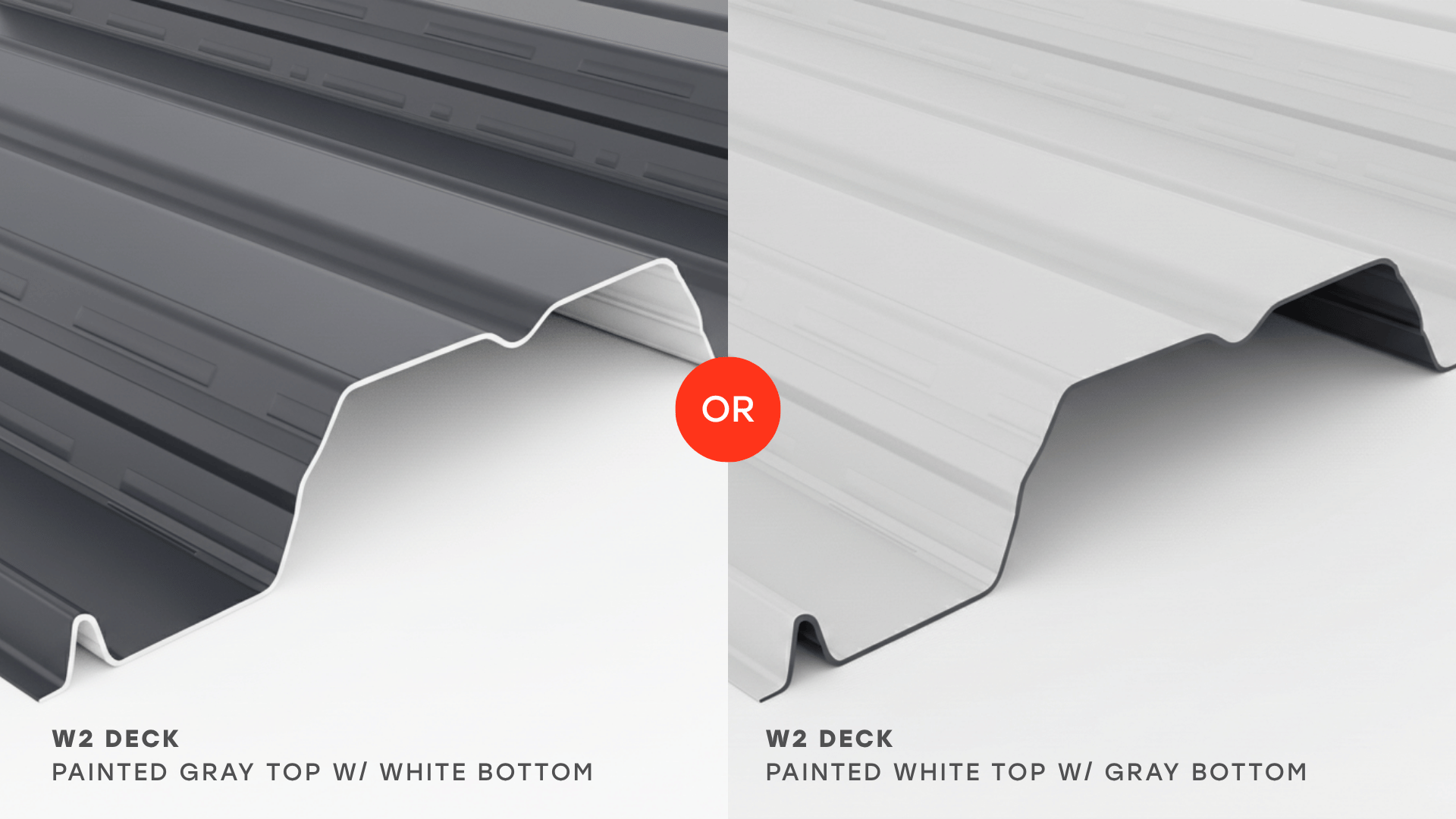

Polyester Gray or White
Choose the color combination that best fits your project’s aesthetic — Gray-Top with White-Bottom or White-Top with Gray-Bottom options available
Vented Or Non-Vented
Our W2 deck is available in vented and non-vented options. The vented finish supports moisture control and concrete curing, while the non-vented finish is ideal for standard structural applications without ventilation needs.
Screw-Fastened
W2 Deck features opposing male and female edges that create a secure side lap connection when installed, enhancing stability and alignment. This design ensures a tight fit between panels, reducing movement and increasing shear strength for structural integrity.

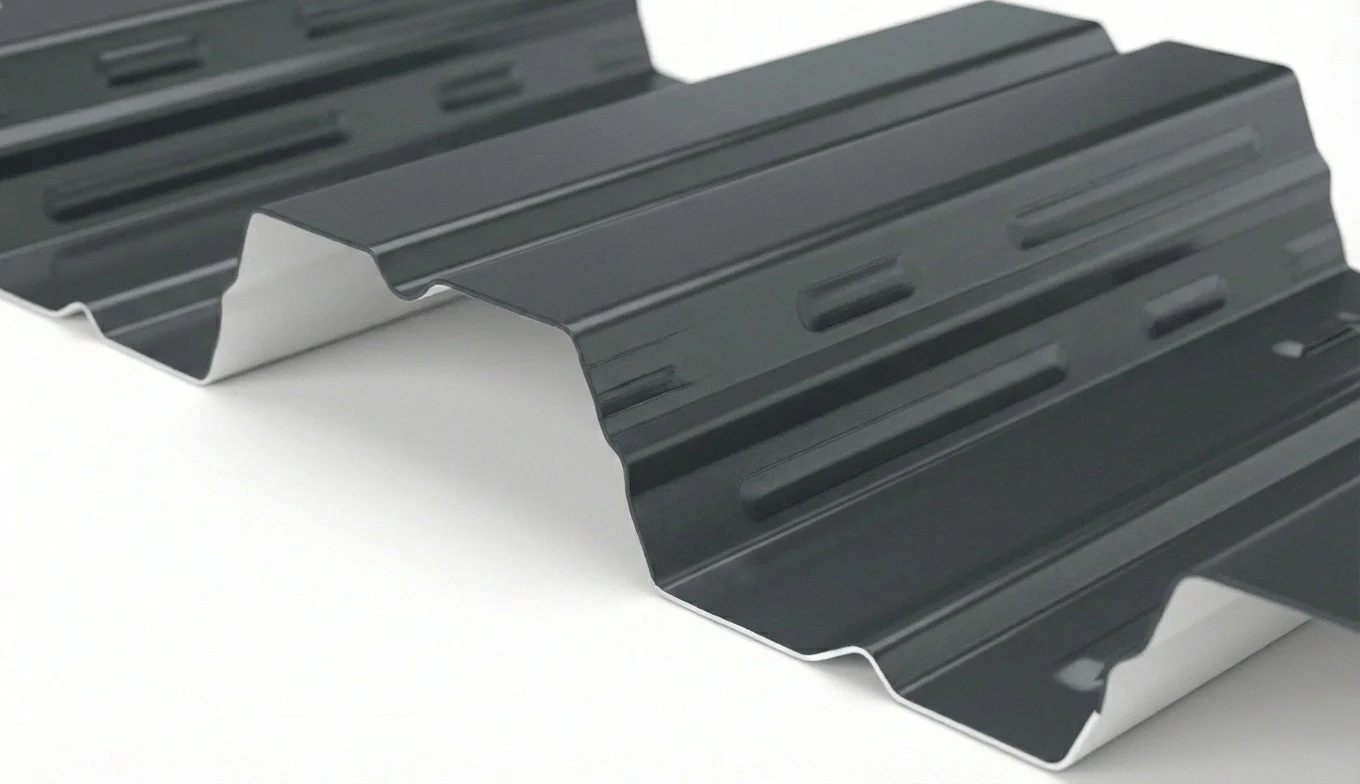

Mechanical Embossments
Mechanical embossments are engineered features on the W2 Deck surface that interlock with concrete, enhancing the shear bond strength between the steel and concrete. These embossments ensure a stronger connection, increasing the overall structural integrity of the decking system.
Request A Painted W2 Deck Quote
Our quotes are valid for 24 hours and may require re-quoting afterward. We respond to quote requests within 24 hours, and all quotes are provided free of charge. Fill out the form with detailed information to receive an accurate quote.
