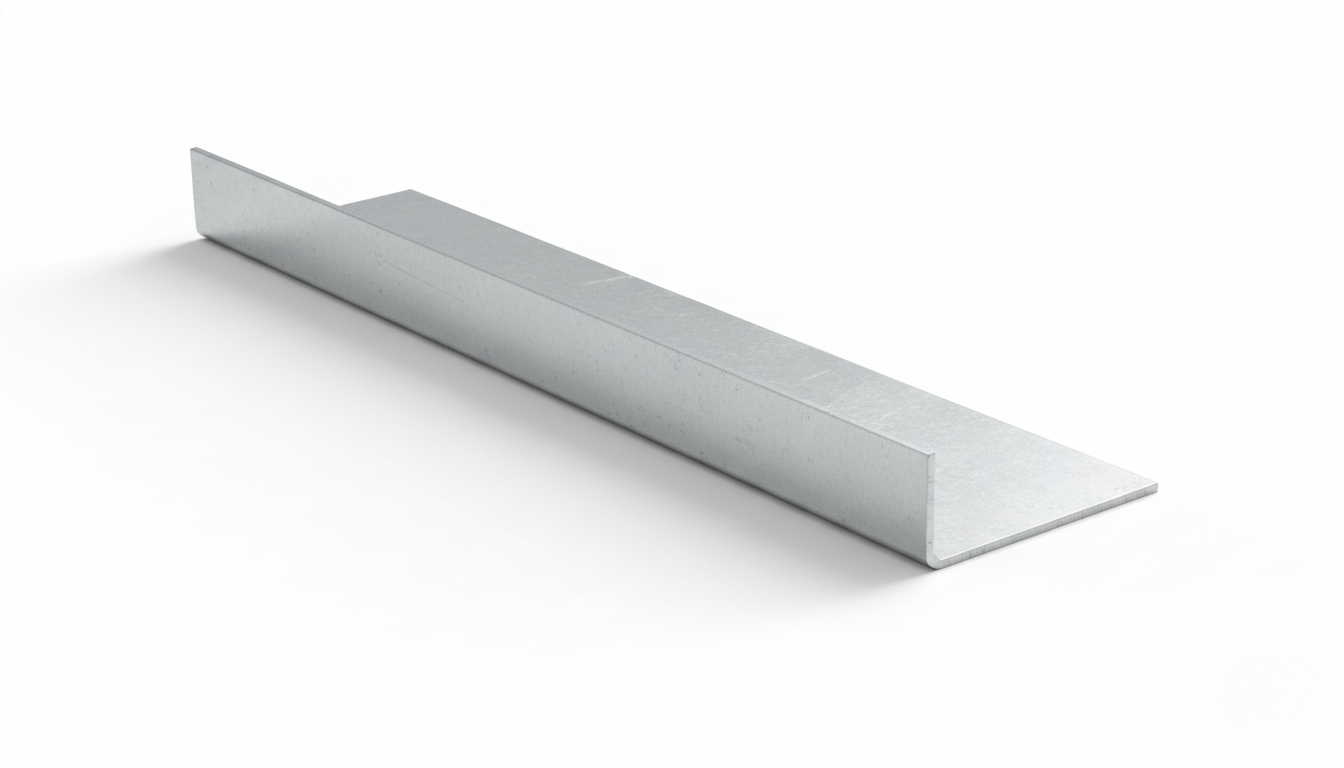

Cell Closure
Cell Closure is a formed steel angle used to seal the open ends of floor decking at beams, walls, and slab edges. It prevents concrete leakage during pours and creates a clean, reinforced slab perimeter.
PURPOSE
Used to seal the open ends of floor decking at beams, walls, and slab edges.

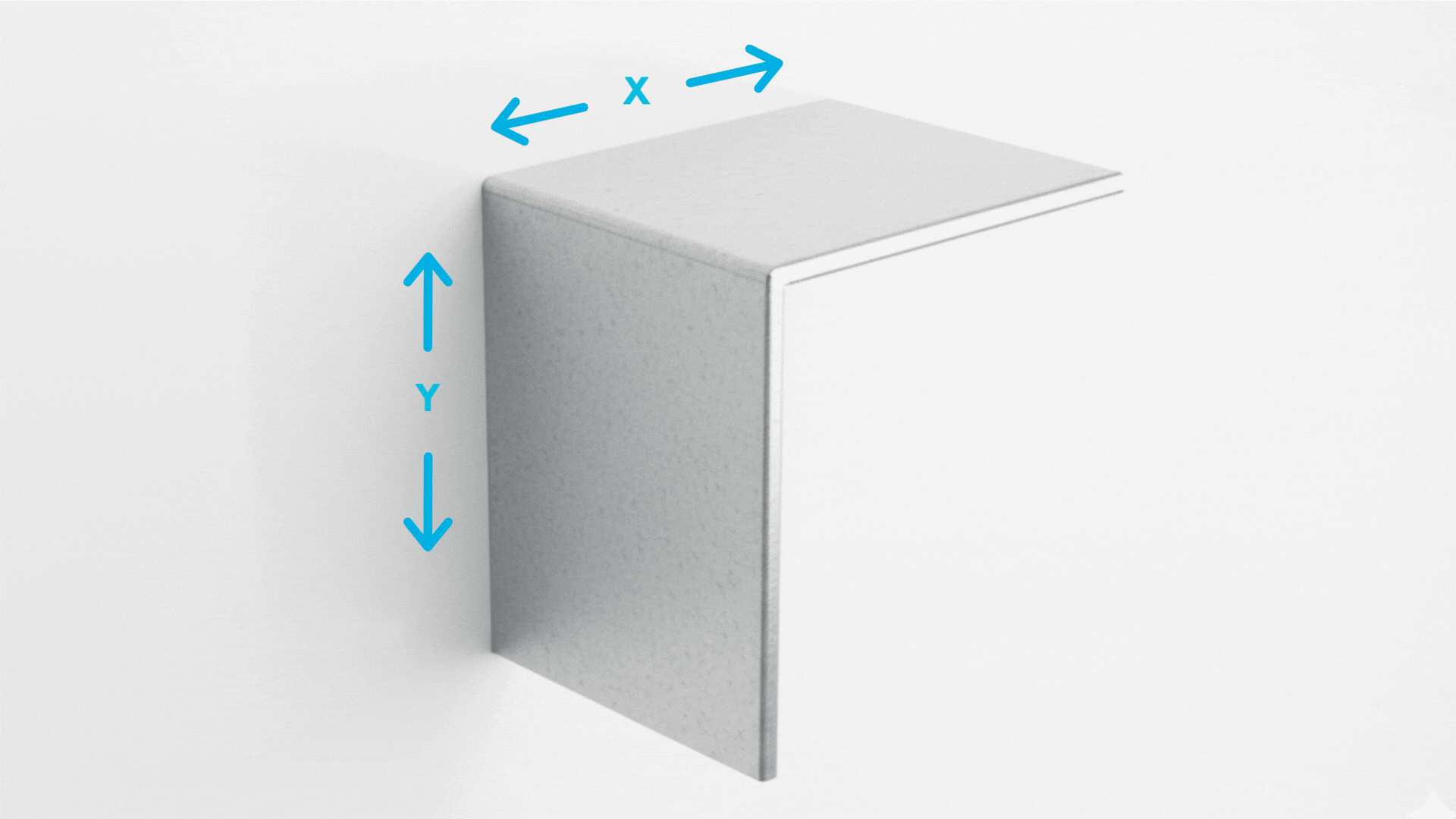

Profile
X = Horizontal Leg → Always 1"
Y = Vertical Leg (Deck Rib Height)
B-Deck: 1.5"
W2 Deck: 2"
W3 Deck: 3"
Length: 3’ to 26’
Material & FInish
Material Type: ASTM A653 structural steel
Grade: 50
Coating: G60 (Galvanized)
Application
Beam lines, Slab perimeters, Pour stop conditions, Openings & transitions
Gauges Available
20GA
- Prevents concrete leakage
- Clean, consistent slab edge
- Sized accurately for each deck
- Universal 1" horizontal leg (X)
- Simple, fast installation
Precision Fit
Precision fit with Metroll W2, W3, N-Deck and B-Deck profiles
Galvanized G60/G90
Durable G60/G90 galvanized protection
Y-Vertical Leg
X = Horizontal Leg → Always 1"
Y = Vertical Leg (Deck Rib Height)
B-Deck: 1.5"
W2 Deck: 2"
W3 Deck: 3"
Request A Cell Closure Quote
Our quotes are valid for 24 hours and may require re-quoting afterward. We respond to quote requests within 24 hours, and all quotes are provided free of charge. Fill out the form with detailed information to receive an accurate quote.
