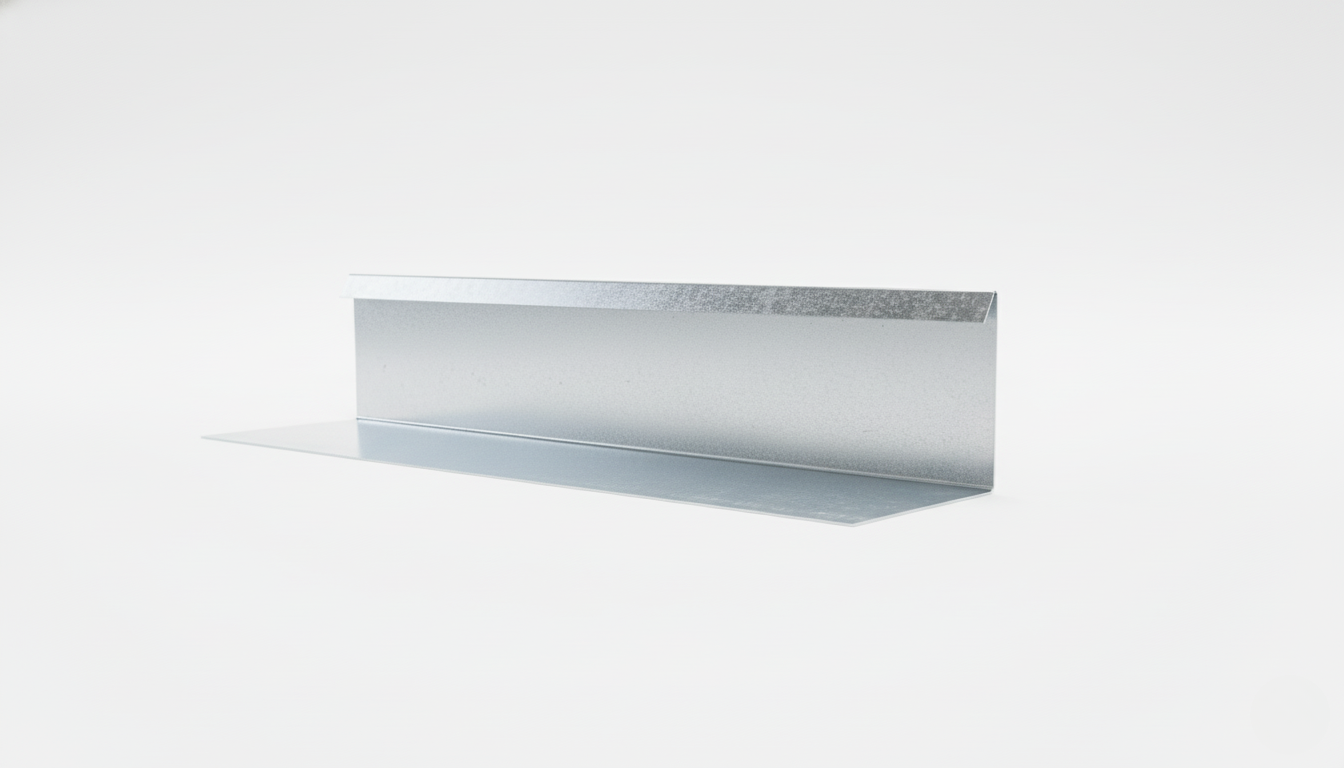

Edge Form / Pour Stop
Metroll Pour Stops are precision-formed steel angles designed to contain and shape concrete at the slab edge. Compatible with Metroll W2, W3, B-Deck, and N-Deck systems, they ensure clean edges, reduced field forming, and faster installation.
PURPOSE
Forms and retains concrete along the perimeter of metal decks and slab openings.
Profile
L-shaped bent plate, matching slab depth.
Length: 3’ to 26’
Maximum Width/Girth: 14”
Material & FInish
Material Type: ASTM A653 structural steel
Grade: 50
Coating: G60 (Galvanized)
Application
Composite decks, mezzanines, parking decks, stairs, and openings.
Gauges Available
16GA
18GA
- Position Pour Stop along deck edge to match slab depth.
- Attach by welding or using mechanical fasteners.
- Place reinforcement as required.
- Pour concrete — Pour Stop retains slab edge.
- Inspect alignment after curing.
Precision Fit
Precision fit with Metroll W2, W3, N-Deck and B-Deck profiles

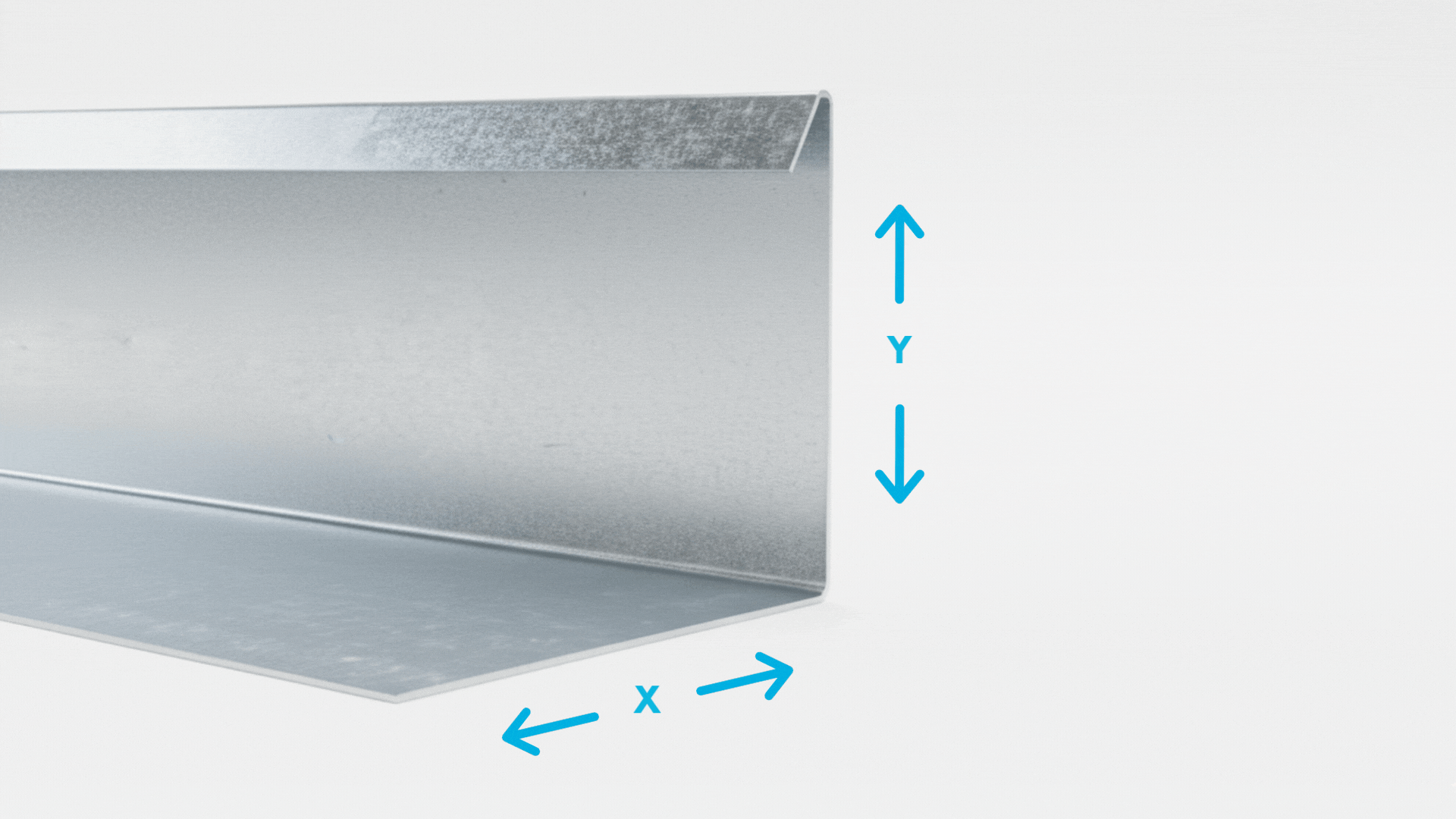

Y-Vertical Leg
Y = Vertical Leg (Deck Rib Height)
B-Deck: 1.5"
W2 Deck: 2"
W3 Deck: 3"
Request A Pour Stop Quote
Our quotes are valid for 24 hours and may require re-quoting afterward. We respond to quote requests within 24 hours, and all quotes are provided free of charge. Fill out the form with detailed information to receive an accurate quote.
